系列：120系列
款式：卷板
型號：16DST5367T
服務熱線：13961291308
♦定制說明：一切規格按照客戶實際情況或考察后量身定制，支持非標定制。
♦庫存配送：有貨，全國送貨保障！
♦溫馨提示：本產品一經下單生產，非質量問題不支持退貨！

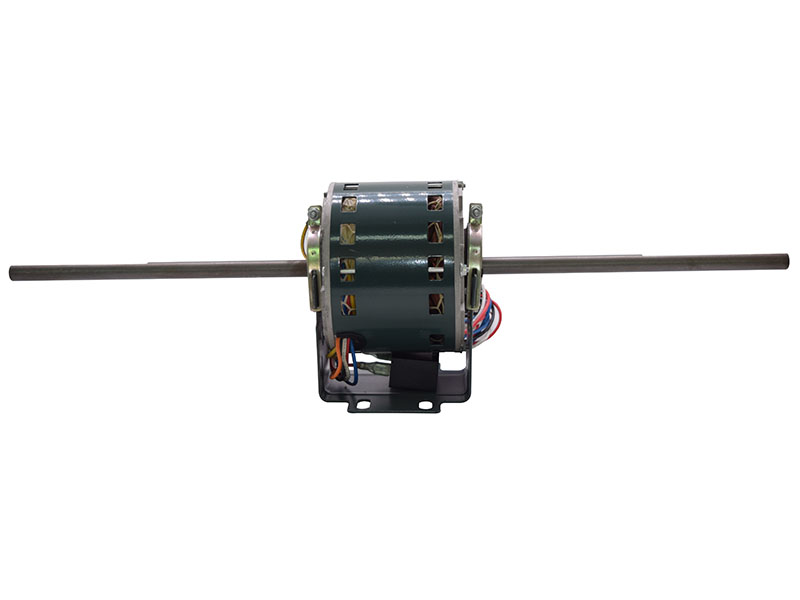

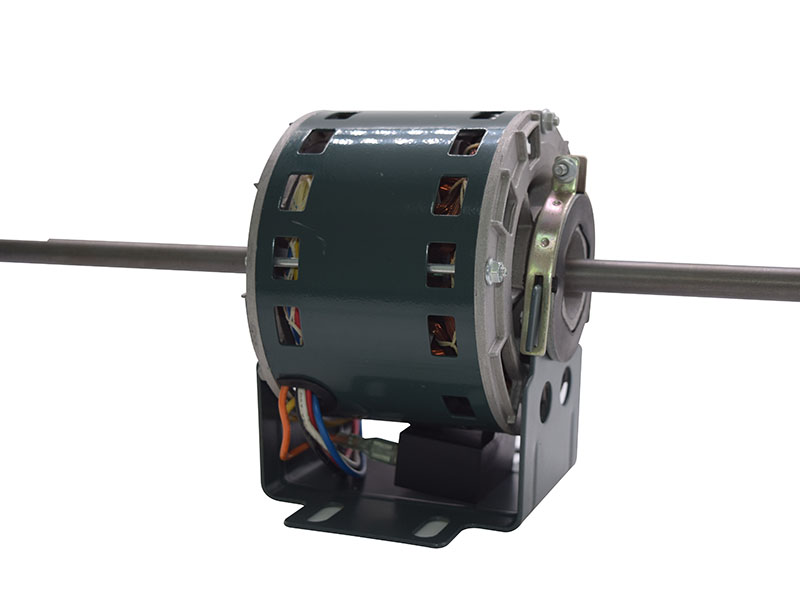

產品描述
Description
Features and Specifications:
Permanent split capacitor.
Open enclosure.
Resilient Base included.
Automatic reset thermal protection.
Direct drive air over.
Insulation class B.
26” Leads.
4 speeds.
Technical Specifications
| RPM | Shaft Dimentions | |||||||
|---|---|---|---|---|---|---|---|---|
| Parts No. | Hp | Speeds | @50Hz | @60Hz | Volts | Bearing | Diameter | Length |
| RS504 | 1/8 | 4 | 1,250 | 1,500 | 208/230 | Sleeve | 1/2″ | 10″ & 10″ |
| RS505 | 1/6 | 4 | 1,250 | 1,500 | 208/230 | Sleeve | 1/2″ | 10″ & 10″ |
| RS506 | 1/4 | 4 | 1,250 | 1,500 | 208/230 | Sleeve | 1/2″ | 10″ & 10″ |
| RS507 | 1/3 | 4 | 1,250 | 1,500 | 208/230 | Sleeve | 1/2″ | 10″ & 10″ |
| RS508 | 1/2 | 4 | 1,250 | 1,500 | 208/230 | Sleeve | 1/2″ | 10″ & 10″ |
NO | Model | Voits | Hz | HP | RPM(SPD) | ROT | CAP(MDF/VAC) | OEM Model |
1 | YSK120-37-4A | 220-240 | 50 | 1/20HP | 1350/3 SPD | CCW-LE | 3/370 | KDE2E4711 |
2 | YSK120-40-4A3 | 220-240 | 50 | 1/20HP | 1100/3 SPD | CW-LE | 3/370 | |
3 | YSK120-50-4A2 | 220-240 | 50 | 1/15HP | 1300/3 SPD | CW-LE | 3/400 | 7455GVA-A19U |
4 | YSK120-64-4A | 220-240 | 50 | 1/12HP | 1320/3 SPD | CCW-LE | 3/400 | 7455HVA-A75X |
5 | YSK120-90-4A5 | 220-240 | 50 | 1/8HP | 1175/3 SPD | CCW-LE | 4/370 | 5KCP29DGE307S |
6 | YDK120-74-4A | 220-240 | 50 | 1/10HP | 1390/3 SPD | CCW-LE | 4/370 | 5KCP29DGE308BS |
7 | YSK120-185-4A | 220-240 | 60 | 1/4HP | 1625/3 SPD | CCW-LE | 7.5/370 | 5KCP29GG8071AS |
8 | YDK120-185-4A | 220-240 | 50 | 1/4HP | 1250RPM | CCW-SE | 5/440 | 5KCP394F1GEA017 |
9 | YSK120-90-4A4 | 220-240 | 50 | 1/8HP | 1300/3 SPD | CW-LE | 5/370 | 7455JVA-A18U |
10 | YSK120-120-4A | 220-240 | 60 | 1/6HP | 1300/4 SPD | CW-LE | 3/370 | 5KCP29FK5367T |
11 | YSK120-90-4A | 220-240 | 60 | 1/8HP | 1600/3 SPD | CW-LE | 4/370 | ACE-809-544-53 |
12 | YDK120-110-6A2 | 220-240 | 50 | 1/6 | 900RPM | CCW-SE | 5/370 | 7456KTS-A12S |
13 | YDK120-90-4A | 208-230 | 60 | 1/8HP | 1550RPM | CW-SE | 4/370 | W.B.002852 |
14 | YDK120-90-6A2 | 220-240 | 50 | 1/8HP | 850RPM | CW-SE | 5/400 | PM310802 |
15 | YDK120-185-6A | 220-240 | 60 | 1/4HP | 950RPM | CW-SE | 5/400 | PM310497 |
16 | YDK120-185-6A2 | 220-240 | 50 | 1/4HP | 950RPM | CW-SE | 5/400 | PM3104186 |
17 | YDK120-75-6A | 220-240 | 50 | 1/10HP | 850 | CCW-SE | 4/370 | GFD FR B42 |
18 | YDK120-185-4A2 | 220-240 | 50 | 1/4 | 1050/3 SPD | CW-SE | 10/370 | 5KCP29MK6641S |
19 | YDK120-150-6A | 220-240 | 50 | 1/5 | 840/3 SPD | CW-SE | 6/370 | 5KCP29KK4571S |
20 | YDK120-90-6 | 220 | 50 | 1/10 | 890/3 SPD | CW-SE | 5/370 | 5KCP29GK6103S |
